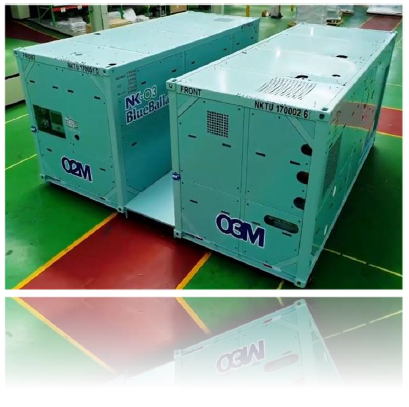

| The NK-O3 BlueBallast system is masterpiece for ballast water treatment. This cost-effective and compact ballast water treatment system is designed to fit easily into the engine room of any ship type and size. |
|
 |
Key Features
- Compliance with SOLAS requirements and all class type approval (G9, LR DNV, JG, ABS, KR, RINA, USCG AMS, BVM G8, NK)
- Economic Cost: Apply the air compressor of NK-O3 BlueBallast system
- Fully automated unattended operation of BWT system & nitrogen generating system by the control panel
- On-site nitrogen generator
- Saving Maintenance: CMS (Carbon Molecular Sieve) can be semi-permanently used.
|
Key Advantages
|
| Advantages |
| Safe & Strongest Oxidant, Disinfectant |
- Especially in aqueous solution |
| Aqueous Solution for Life Matters |
- 3,000 municipal plants world-wide |
| Flexible Application |
- Municipal & Industrial wastewater, medical, Food processing |
| Extremely Short Half-Life Time |
- 5.8 second in seawater, 30 minutes in fresh water and 54 minutes in gaseous state. |
| Technically Proven System |
- First used as disinfectant by french municipality in 1899 and installed up to 1,000 for commercial and industrial use. |
|
| |

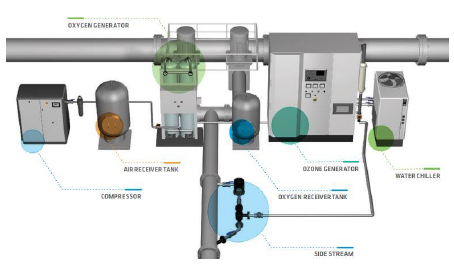

Technical Detail of System
|
| Installation |
 |
| Ballasting process of NK BWTS System |
| |
| In the NK-O3 Blue Ballast system a ship-board Ozone generator takes ambient air and strips away the nitrogen, concentrating the oxygen content – which is then passed through a high voltage or high frequency electrical field to produce ozone. The ozone is then injected into the incoming ballast water to oxidize and neutralize any harmful aquatic species. A percentage of the aquatic species, especially any bacteria and viruses in the ballast water, are killed by direct contact with the ozone. The remainder are killed or neutralized when the ozone reacts with other chemicals that occur naturally in seawater, to form hypobromous acid, a highly effective disinfectant. |
| |

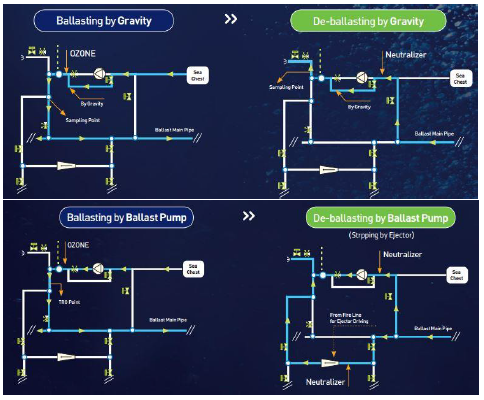

| Standard Installation detail |
 |

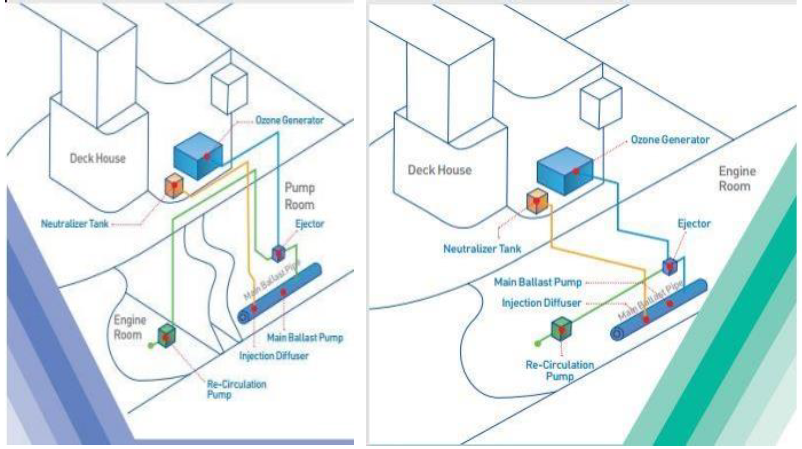

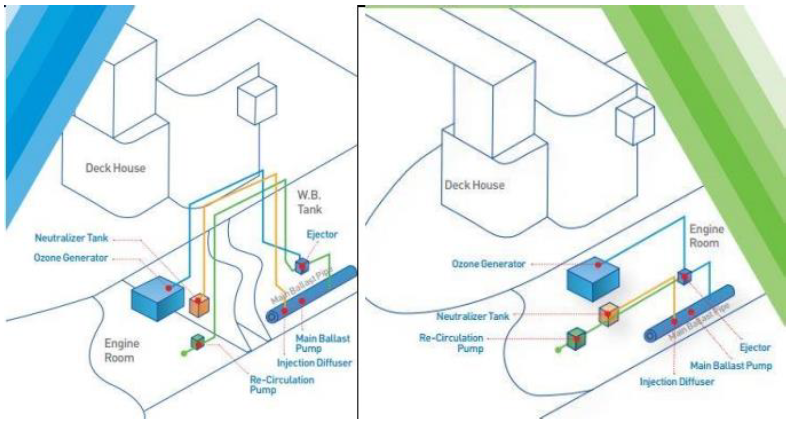

| System Application |
 |
| 1.PC_Submerged Ballast Pump (750m /h3 X 2) |
|
2. LNG Carrier (3000m 3/h X 2) |
 |
| 3. 118K COT (2000m 3/h X 2) |
|
4. VLOC (3500m 3/h X 2) |
