NK Fire Fighting System

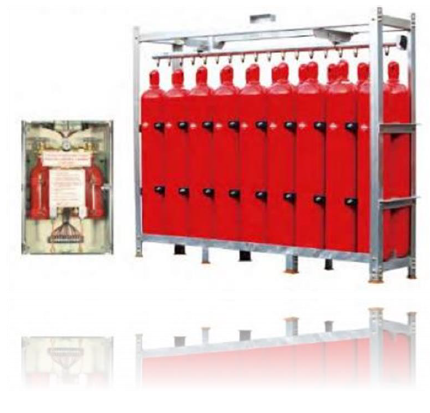

CO2 System


NK CO2 Firefighting System is the best CO2 Firefighting System with fast fire suppression, general availability for any vessel, and easy installation with ALL CLASS TYPE APPROVAL


Key Features

  • Compliance with SOLAS requirements and all class type approval (LR, BV, RINA, ABS, DNV GL, ClassNK, KR)
  • UL LISTED
  • K.F.I
   CO2 Firefighting System

Key Advantages
Fast   Quick discharge reduces potential cost of damages


Economical   Unique technology of NK provides compact firefighting system without any wasted place and unnecessary cost.


Versatile Adaptability   Can adapt into various place, such as Engine Room, Cargo Hold, Boiler Room, Purifier Room, Paint Store, Pump Room, and ECR.

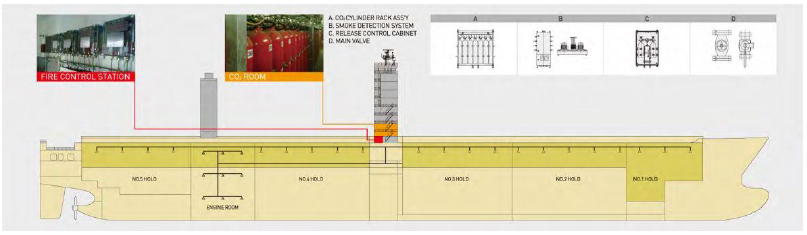

Technical Detail of System
Technical Detail of System

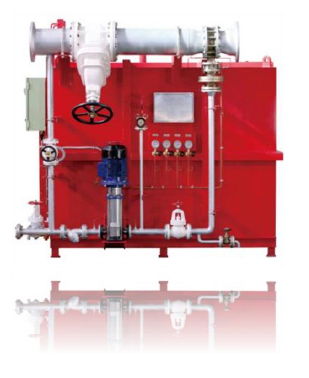

Expansion Foam System


Fire on ships carrying flammable liquid cargoes is an extreme danger due to ies explosive liquid storage.

NK Expansion Foam Firefighting System is the best Expansion Foam Firefighting System with Higher expansion ratio, Quick operation, Less installation space, Less residue after fire extinguishing, Easy maintenance with major class societies		   Expansion Foam System

Tecnical Detail of System
Tecnical Detail of System

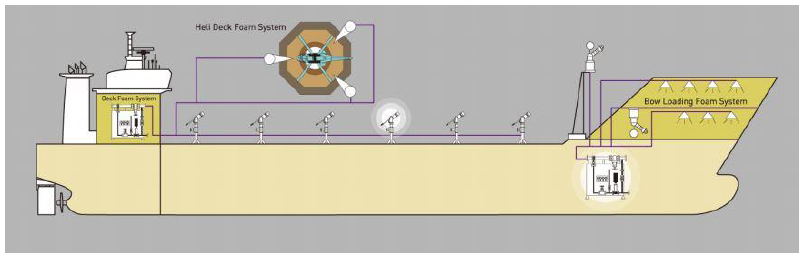

NK Expansion Foam Firefighting System is installed mainly in ship deck area for low expansion foam system but it can also cover enclosed area using high expansion foam system.


Extinguishing process of NK Expansion Foam System
A foam system consists of water supply, foam liquid storage, a proportioning device and a distribution. The foam liquid is stored in a tank, the material of which can be mild steel with painting, stainless steel or GRP. The Tank must be completed with vent, gauge and access manhole. The foam is delivered by a centrifugal foam pump to a foam proportioner that mixes 1 - 6% of foam liquid and 97-94% sea water. Foam Solution is supplied to the deck monitors, foam nozzle or foam generator.

System Application
  1. ships carrying flammable liquid cargoes
  2. tanks which rupture either by explosion or collision
  3. On deck for flammable liquid cargoes

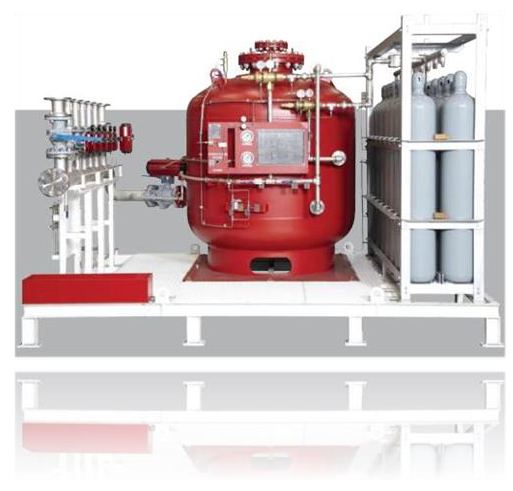

Dry Powder System


NK Dry Power System is Independent system: Activated by nitrogen gas pressure without external power sources. This system based on Pre-engineered modular skid, which has Easy installation and operation. Moreover, this system is economic system for saving time and costs for installation and maintenance. It can be applied in comprehensive range of sizes and installation to be suitable for deck mount by Housing modular type.   Dry Powder System
NK Dry Powder system
Location on the cargo deck area including the cargo loading and unloading manifold
Equipment
  1. Dry Powder Storage Tank
  2. N2 Propellant Cylinder Unit
  3. Valves
  4. Powder Discharge Monitor
  5. Hand hose Cabinet
  6. Remote Release Station
  7. Local remote release station
Installation On the deck
Internal Pressure 14.7 Bar
Application LNG and LPG vessel


Technical Detail of System

NK Dry Powder Firefighting System is installed mainly on the cargo deck area including the cargo loading and unloading manifold
Technical Detail of System
System Application
  1. Ships carrying flammable liquid cargoes
  2. LNG and LPG vessel

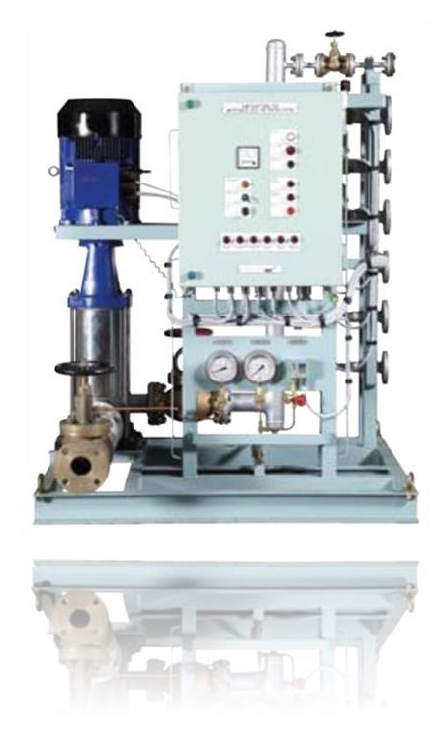

Water Mist System


NK WATER MIST Firefighting System is the best WATER MIST Firefighting System with environmentally friendly, Safe for people, and installation space saving with ALL CLASS TYPE APPROVAL


Key Advantages

  • Environmentally friendly
  • Alternative to gas
  • Suppression systems
  • Safe for people
  • High cooling effect
  • Low water consumption
  • Minimal water damage
  • Installation space saving
   Water Mist System

Design Figure
Related Regulation
1.Local application in machinery spaces (IMO MSC Circ.913, 1165 & 1387)
  • Low pressure system with 12 bar
  • Each Nozzle Capacity: 15 liter per min.
2. Total flooding of machinery spaces (IMO MSC Circ. 1165 & 1269)
  • High pressure system with 100 bar
  • Cover volumes up to 3000 m3
  • Each Nozzle Capacity: 3 liter/min. for ceiling & bilge or 1 liter/min. for door way

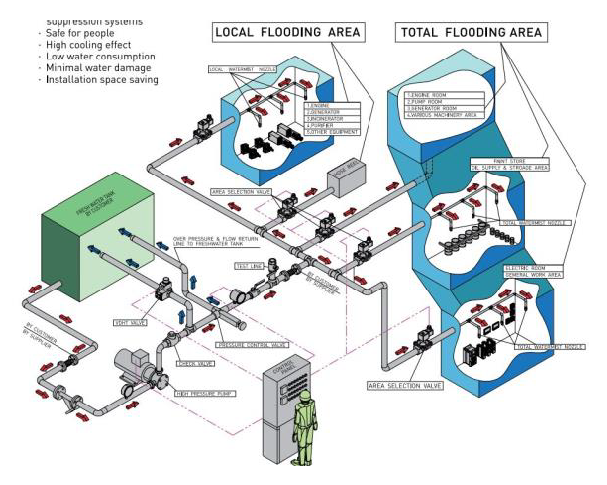

Technical Detail of System
Technical Detail of System
Extinguishing process of NK WATER MIST System

NK's water mist system is based on the principle that small water evaporates early over the course of the fire and in that way the heat in the areas is absorbed. The size of droplets is classified as NFPA 750 class1.

This extremely small droplet size makes the water mist system highly effective and uses only small amount of water, which means water damage is limited. The key factors are the system ability to cool and the localized oxygen displacement effect.

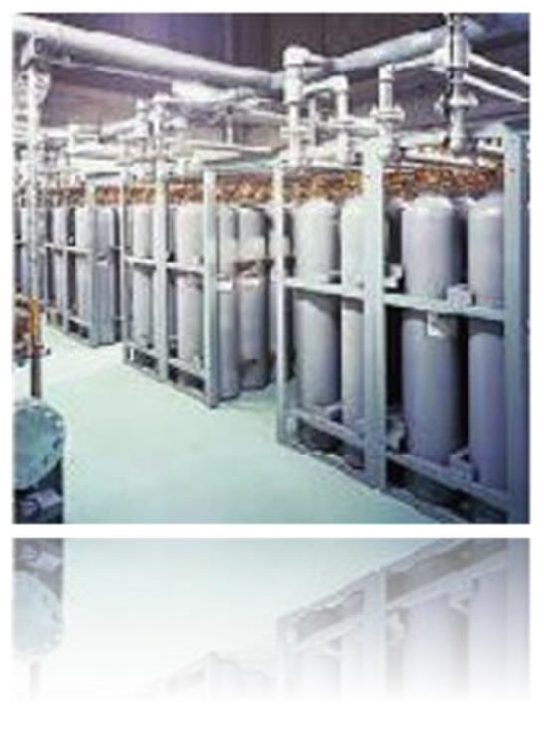

N2 Firefighting System


The N2 system has been designed to human safety and developed as the most economical alternative fire extinguishant to Halon and CO2 enabled to protect all hazards environmentally friendly methods.

Tested and approved by marine regulatory bodies throughout the world, N2 offer effective solutions for almost all combustible materials and flammable liquids and is particularly suitable for areas where water, foam or powder are unacceptable		   N2 Firefighting System

Key Features

  • Compliance with SOLAS requirements and approval by major class (LR, BV, RINA, ABS, DNV GL, ClassNK, KR)
NK N2 System
1. not harmful to human causing no equipment damage
2. zero residue and contamination
3. no conductivity and corrosion
4. Free from Pyrolysis, Ozone depletion, Greenhouse effect, and atmospheric pollution.
5. Speed & Large Covering Area
6. Maintained Long Period
7. A cost saving of 30% or more compared to other companies’ products.
8. By increasing cylinder pressure, higher efficiency of installation space than other brand (12 Cylinders: 300Bar)
9. Fast response than other brand
